Product Description

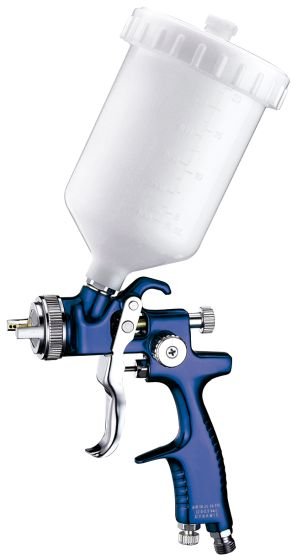

The Astro Tools EUROHE109 EuroPro High Efficiency/High Transfer Spray Gun with 1.9mm Nozzle & Plastic Cup maintains a higher transfer rate for a quicker pace. By piling the paint higher, this spray gun helps minimize overlap, which is needed on passes. This tool’s body is machined from anodized forged CNC and the fittings provide a longer corrosion free tool life and a reduced number of gaskets. This spray gun also features internal coated passages for consistent flow and easier cleaning, stainless steel needle and fluid tip, and a soft trigger pull with a precise lubricated adjustment knob for better control and reduced fatigue.
Features
- Higher transfer rate for a quicker pace Piles paint higher to minimize overlap needed on passes Maintains very high transfer efficiency Large spray pattern, 12.5″ at 7″ distance Anodized forged CNC machined body and fittings provides longer corrosion free tool life and reduced the number of gaskets Internal coated passages for consistent flow and easier cleaning Stainless steel needle and fluid tip Soft trigger pull and precise lubricated adjustment knob for better control and reduced fatigue M16*P1.5 female thread fluid joint is compatible with most traditional and disposable cup systems Compatible with waterborne and solvent based products Specs: Nozzle Size: 1.9mm Cup Capacity: 600ml Operation Pressure: 29psi Weight: 0.7lbs. (325g) Gun Dimensions W x H: 7″ x 5-34″ (175mm x 145mm) Avg. Air Consumption: 10.5 — 12.5cfm Air Inlet Thread NPT: ¼” Required Compressor: 3 — 5hp Max. Pattern at 6″ to 8″ Distance: 11″ — 13″ (280-330mm) Air Hose I.D. Size: 3/8″ Nozzle Size: 1.9mm Cup Capacity: 600ml Operation Pressure: 29psi Weight: 0.7lbs. (325g) Gun Dimensions W x H: 7″ x 5-34″ (175mm x 145mm) Avg. Air Consumption: 10.5 — 12.5cfm Air Inlet Thread NPT: ¼” Required Compressor: 3 — 5hp Max. Pattern at 6″” to 8″” Distance: 11″ — 13″ (280-330mm) Air Hose I.D. Size: 6 — 8mm
Specifications
| Part No. | EUROHE109 |
|---|---|
| Product Line | AST |
| Manufacturer | Astro Pneumatic Tool Company |
| UPC | 745227014132 |
| Part Status | A |
